Residential Fire Sprinkler Hydraulic Calculation and Design Software.
INTEGRATED DATA ENVIRONMENT
Specs on Residential 2.5 for DOS
- Microsoft DOS, Windows 95/98/NT/2000/XP/Vista.
- Residential Sprinkler Calcs per NFPA 13-D,13-R based on flow density.
- Pipe Network Connectivity and error checking.
- K-Factor and Pipe Diameter list boxes, Water Meter Loss, Domestic Water Demand.
- Fittings expressed as letter symbols ( EE, 2E, 2T, ... ) or pipe length.
- Friction losses calculated using the Hazen-Williams equation.
- Equivalent Length and C-Factor automatic retrieval and display.
- Utilities include Pipe Table Editor, Equivalent K-Factor.
- Booster pumps automatically selected.
- Calcs with Static pressure alone or with Residual pressure and Flow.
- Spreadsheets, menus, icons, tool bar for rapid data entry & editing.

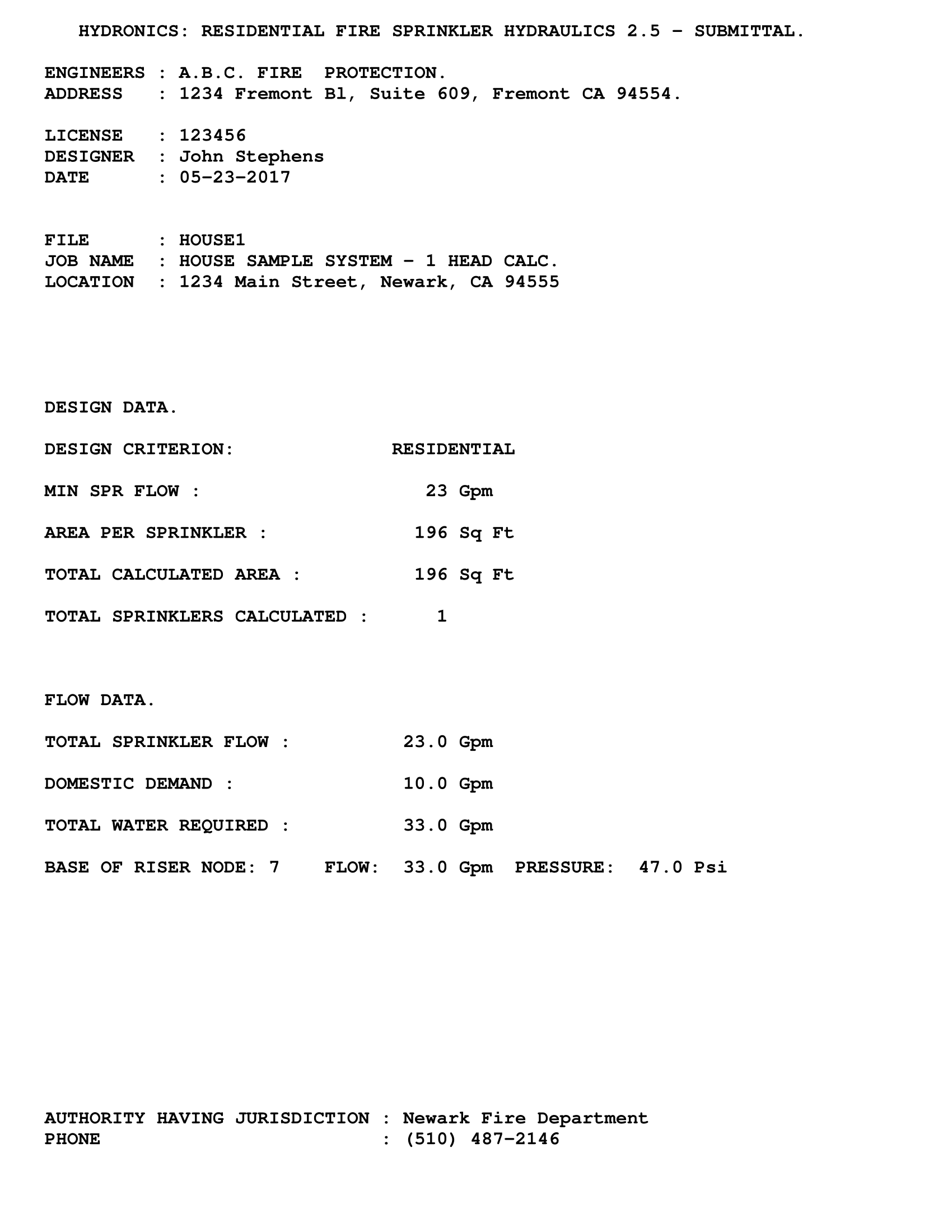

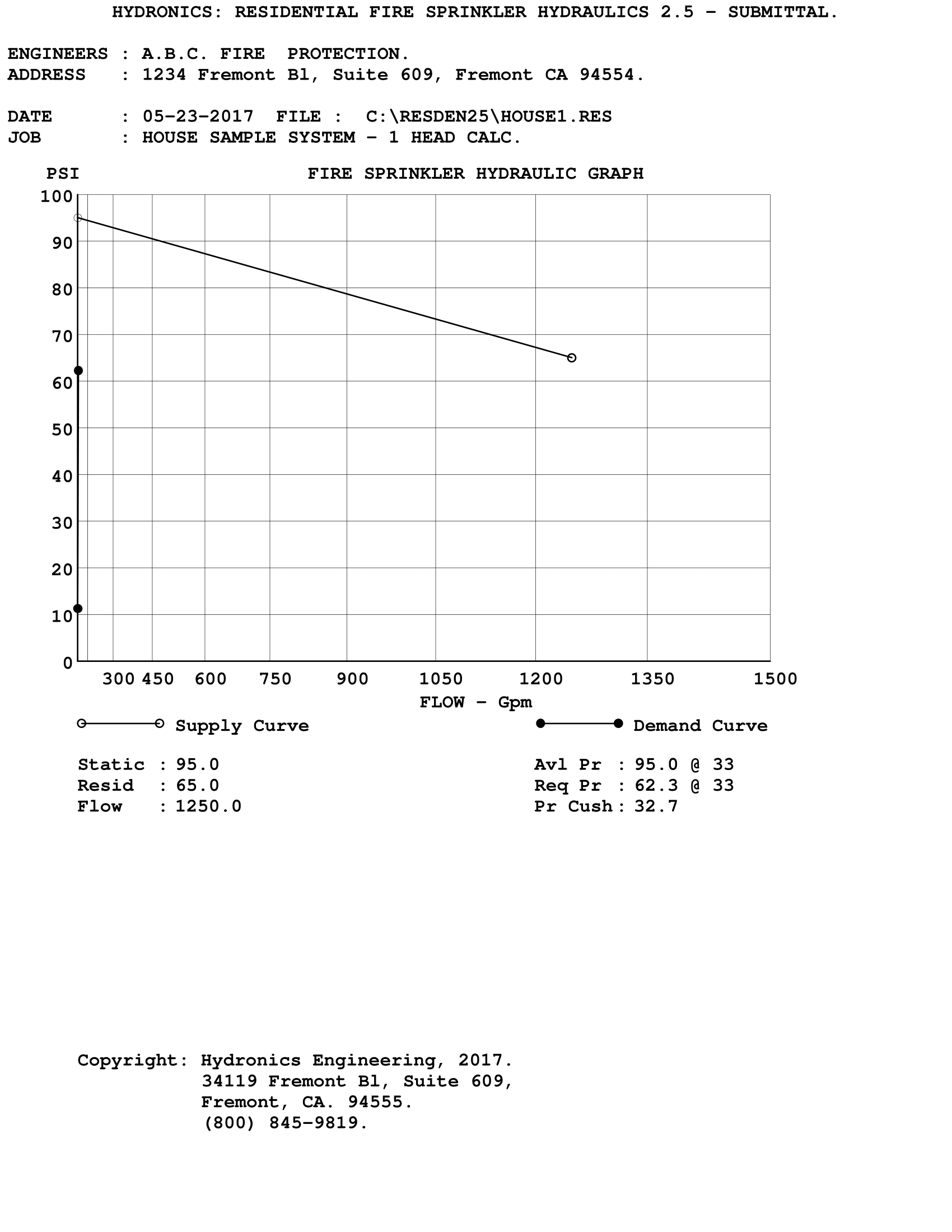

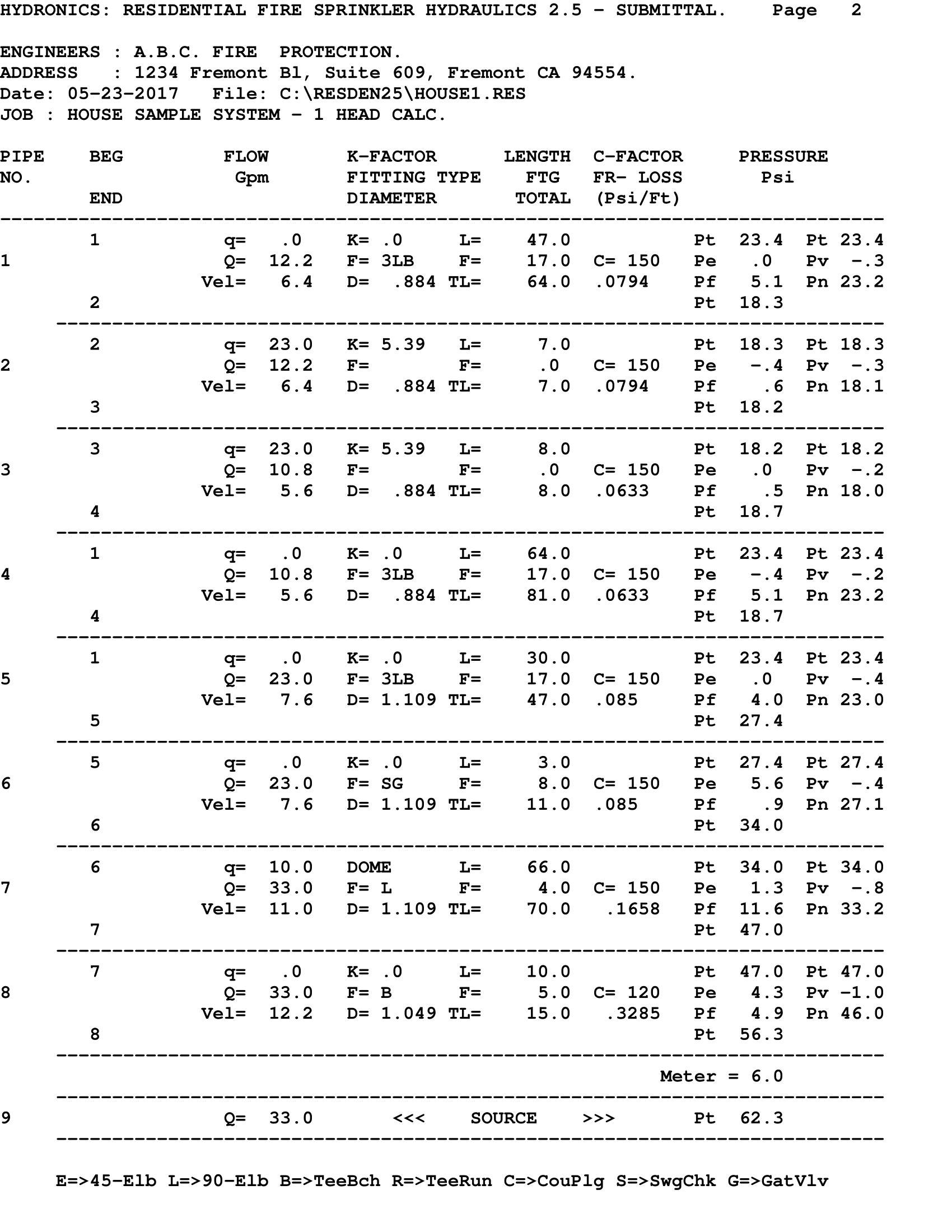

SUBMITTAL REPORT - RESIDENTIAL 1 HEAD CALC
