FIRE SPRINKLER HYDRAULIC CALCULATIONS AND HYDRANT FLOW TESTING

( 800-845-9819 ) DISCOUNT PRICE ON IMMEDIATE PURCHASE ( 800-845-9819 )

SHOPPING CART	SOFTWARE DESCRIPTION	PRICE
Commercial 5.5 for Windows	Calcs for Commercial and Industrial fire sprinkler and spray systems per NFPA 13,14,15,16,231-C.* Single or networked computers. US/Metric/User Manual.* Sample Reports Calc Specs Pipes Pump PayPerCalc	$3195
*Residential 5.4 for Windows*	Calcs for Residential occupancies per NFPA 13D, 13R. Single or networked computers. US/User Manual. Sample Reports Calc Specs Pipes Pump PayPerCalc	$3195
Commercial 4.4 for Windows	Calcs for Commercial and Industrial fire sprinkler and spray systems per NFPA 13,15,231-C. US/Metric/User Manual. Sample Reports Calc Specs Pipes Demo	$1700 $1500
*Residential 4.4 for Windows*	Calcs for Residential occupancies per NFPA 13D, 13R. US/User Manual. Sample Reports Calc Specs Pipes PayPerCalc	$1700 $1500
StandPipe 4.32 for Windows	Calcs for StandPipes and Private Hydrants per NFPA 14, Marinas and Boatyards per NFPA 303. US/Metric/User Manual. Sample Reports Calc Specs Pipes PayPerCalc	*$1195*
Hydrant Flow Test for Windows	Hydrant Flow Test per NFPA 291 and AWWA M17. US/User Manual. Sample Reports Calcs Specs Demo	$695
Commercial 2.5 for DOS	Calcs for Commercial and Industrial occupancies per NFPA 13,15,231-C. US/Metric/User Manual. Sample Reports Specs Demo	$895
Residential 2.5 for DOS	Calcs for Residential occupancies per NFPA 13D, 13R. US Units/User Manual. Sample Reports Specs	$895
StandPipe 2.5 for DOS	Calcs for StandPipes and Private Hydrants per NFPA 14. US/Metric/User Manual. Sample Reports Specs	$895

[ Back ]

Commercial 5.5/Residential 5.5 - Booster Pump Dialog

Commercial 5.5 for Windows - Booster Pump Dialog

Commercial 5.5 for Windows features an Advanced Pump Selection Dialog that automatically calculates the pump rated pressure and pump rated flow. It plots the pump curve and keeps track of important fire pump discharge and suction parameters. The Net Positive Suction Pressure Available is calculated using elevation pressure losses(Hz), underground piping friction losses (Hf) and fixed losses between the source and pump suction.

[ Back ]

Discount Price

The monthly discount price ( disc ) appears in the PRICE column directly below the ( retail ) price. This price only applies to an IMMEDIATE PURCHASE i.e. one completed on the same day that an initial phone, email or fax inquiry is made on a product. Discounts apply to direct purchases made here via our shopping cart without an initial inquiry on a product. If you cannot complete the purchase on the same day contact us immediately for an extension. Discounts expire at end of the month in which they are offered.
Controls
HYDRONICS features impressive state-of-the-art custom controls that put you in charge of all the data entry and editing requirements for your Fire Sprinker Hydraulic calculations. It features pull down menus and scrollable spreadsheets linked to button bars for copy, paste, repeat, replace, insert and delete operations on multiple or single blocks of nodes and pipes. Typical values can be easily entered for multiple nodes and pipes. Click a button bar to repeat lines or columns in the spreadsheet. Clicking on the printer icon sends input or output data to the printer. Losses for meters and backflow devices are entered in psi. The system can be balanced for a minimum end-head flow or pressure. A single mouse click checks for errors, starts the calculation and displays the output. HYDRONICS uses finite element analysis in conjunction with the Newton-Raphson and LaGuerre algorithms for quickly and accurately balancing any fire sprinkler system configuration.
[ Back ]

Pipes

A single key press or mouse click gives you access to 7 different kinds of sprinkler piping. There are over 60 built-in diameters for Steel, XL, Copper, Dynaflow, CPVC, PVC and Ductile Iron. Pipe sizes may be entered as nominal (1, 1.25,1.5, ...) or actual (1, 1.049, 1.380,...) diameters. There are 7 different fitting symbols. Multiple fittings are easily described e.g. 4E3T means four elbows and three tees. Fittings may also be entered as total equivalent lengths of pipe. Use the Pipe Table Editor and enter your own unique values for diameters, fitting symbols and fitting lengths.
[ Back ]

Utilities

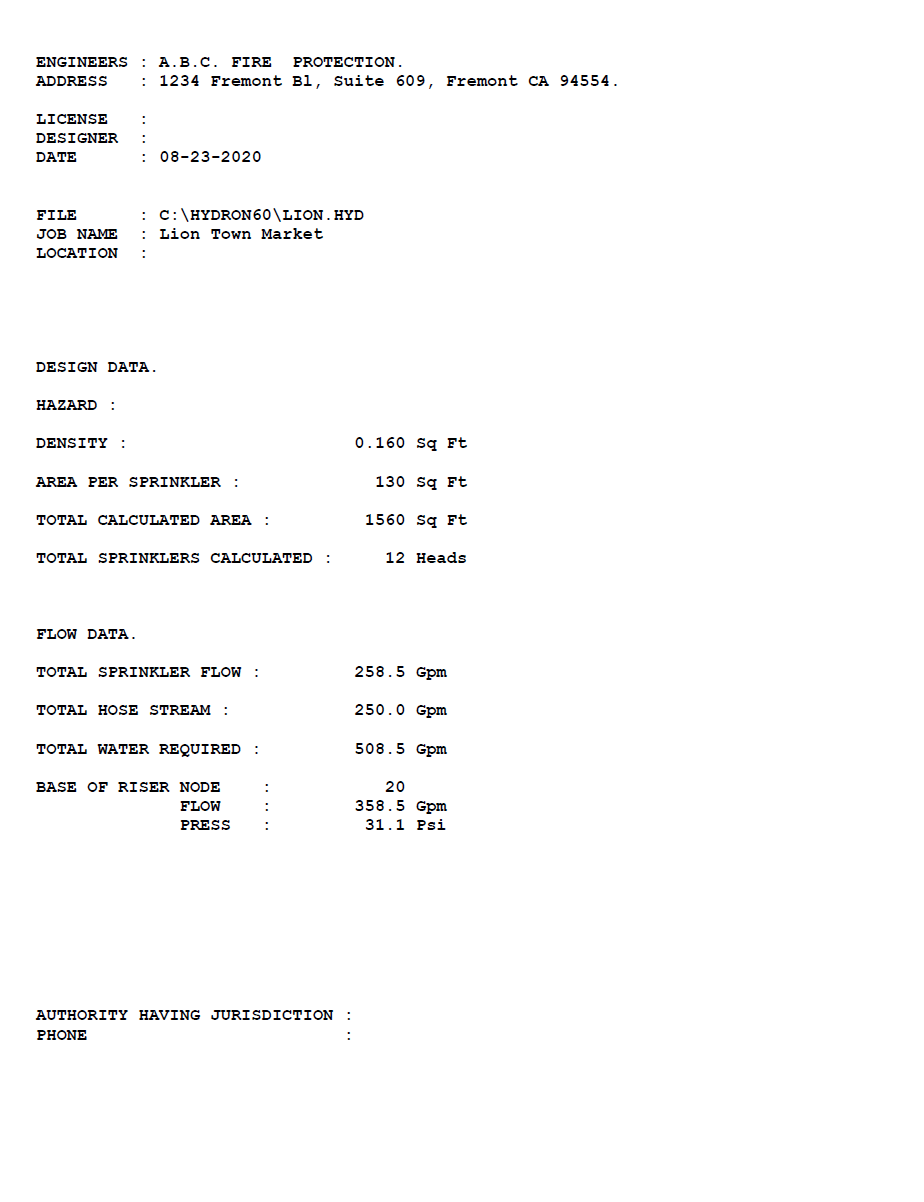

Cover Sheet - easily created and automatically updated.

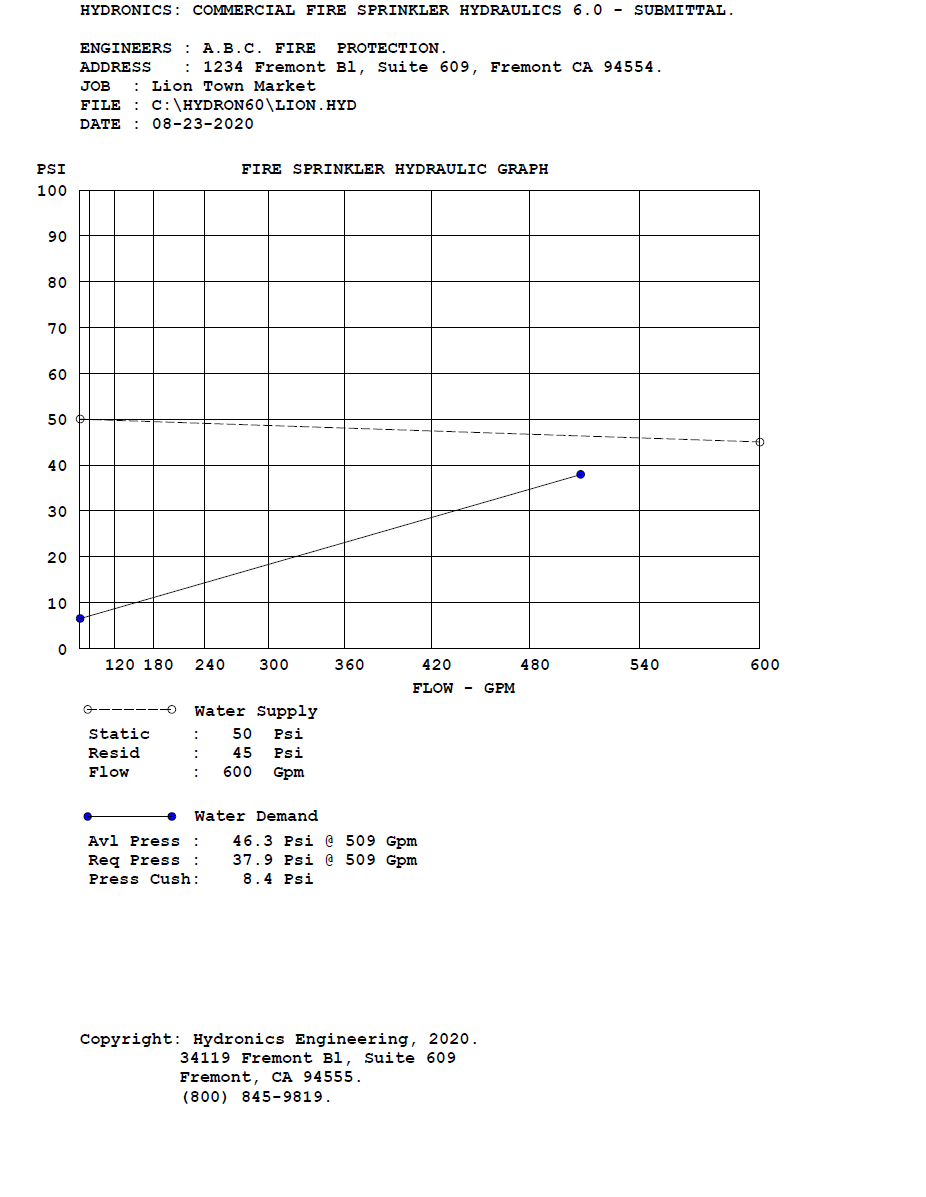

Report Submittal - your final report is printed using the neat and attractive NFPA-style Submittal Reports with the N^1.85graph and cover sheet.

Grid Estimator - quickly builds very large systems of cross mains and branch lines. The data created can be easily modified, saved and calculated from the editor.

Automatic Peaking - automatically peaks and selects the MRA for grid systems that are defined by the Grid Estimator or those manually entered using the full screen editor. It prints a Peaking Summary sheet.

Velocity Analyzer - calculates measures of fluid turbulence such as Moody's f and the Reynold's Number. The analyzer calculates and compares friction losses using both the Hazen-Williams and Darcy-Weisbach formulas to help you analyze and solve velocity problems. Settle velocity arguments with this powerful tool.

K-Factor Calculator - calculate adjusted k-factors for arm-overs and drops.

Pipe Table Editor - allows users to modify or add to the built-in pipe diameters, fitting symbols, symbol descriptors and equivalent lengths.

[ Back ]

Analysis
HYDRONICS provides you with immediate and comprehensive summaries of the hydraulic calculation output that can be viewed on your screen or sent to the printer. You can easily keep track of the friction loss, flow and velocity for every pipe in your sprinkler system.
[ Back ]

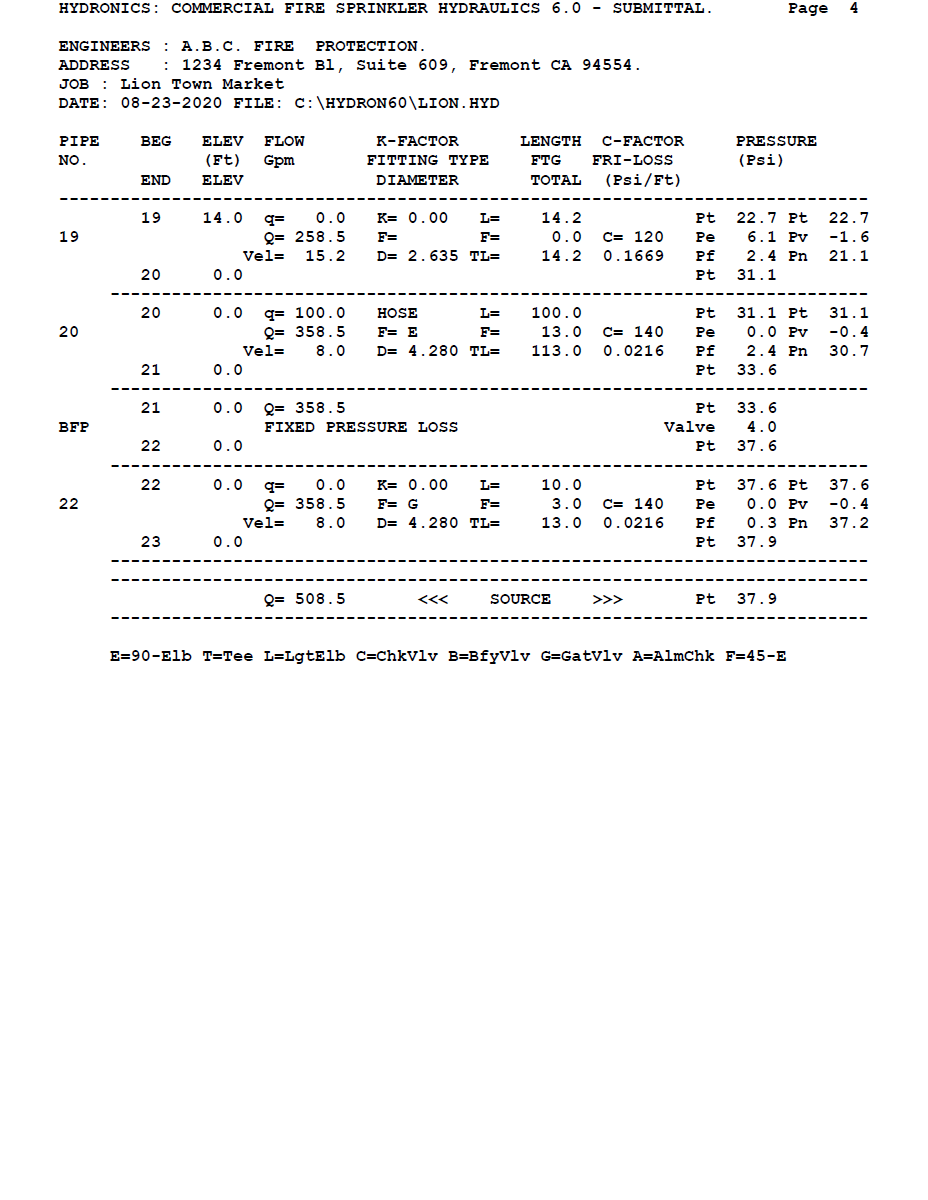

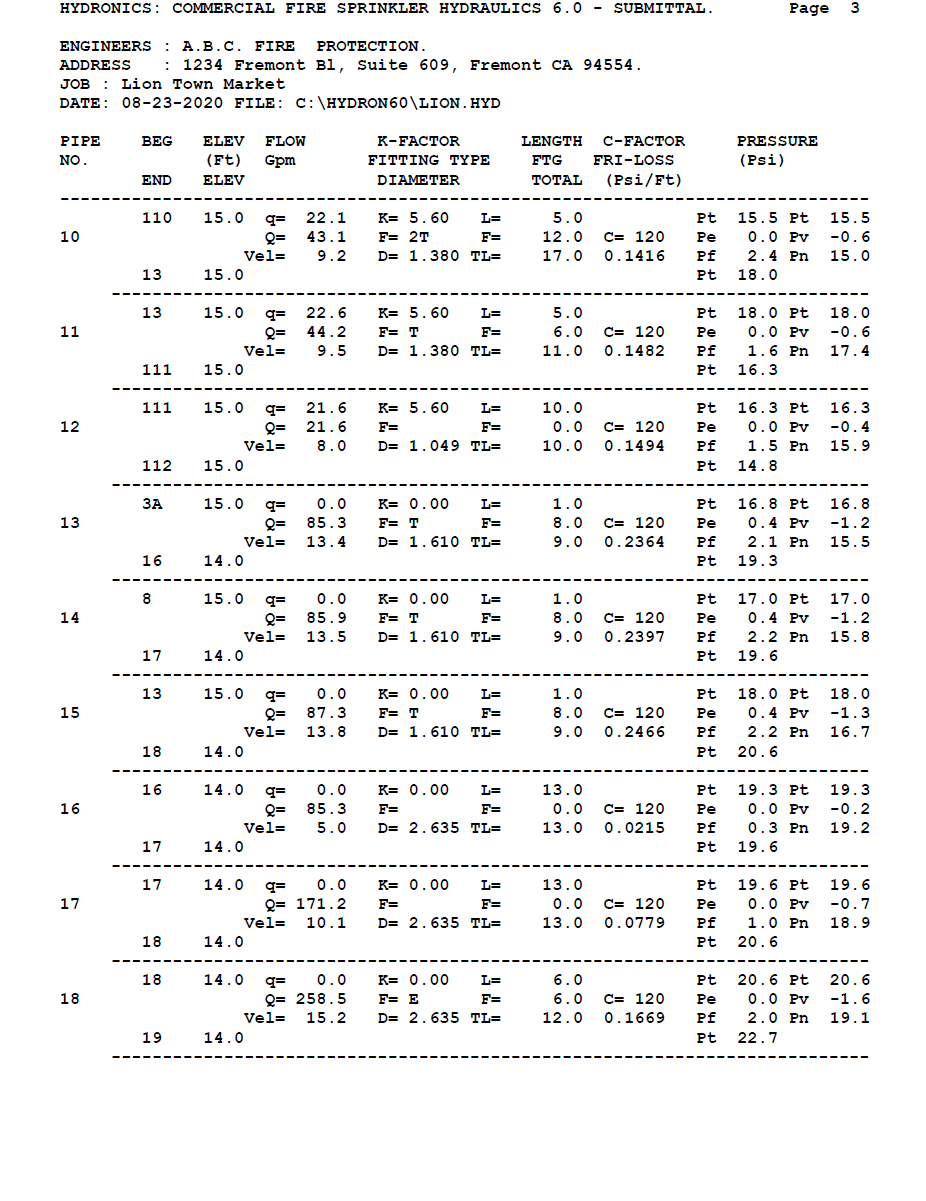

SAMPLE SUBMITTAL REPORTS
Tree System Compound Grid StandPipe Calc Residential 1-Head Calc Residential 2-Head Calc Hydrant Flow Test
